Linux Gaming Setup Part 2: Software configs, Nvidia binary driver, bumblebee, steam and playonlinux howto

I decided to make a second part of my Linux gaming setup post, as I feel that the first one is more like a list of stuff that are on top my desk. Anyway, once you’re done with hardware, let’s get into the software configurations. These steps are done with Ubuntu 14.04 and Ubuntu 14.04-based Evolve OS Alpha 3

1. GPU drivers and bumblebee

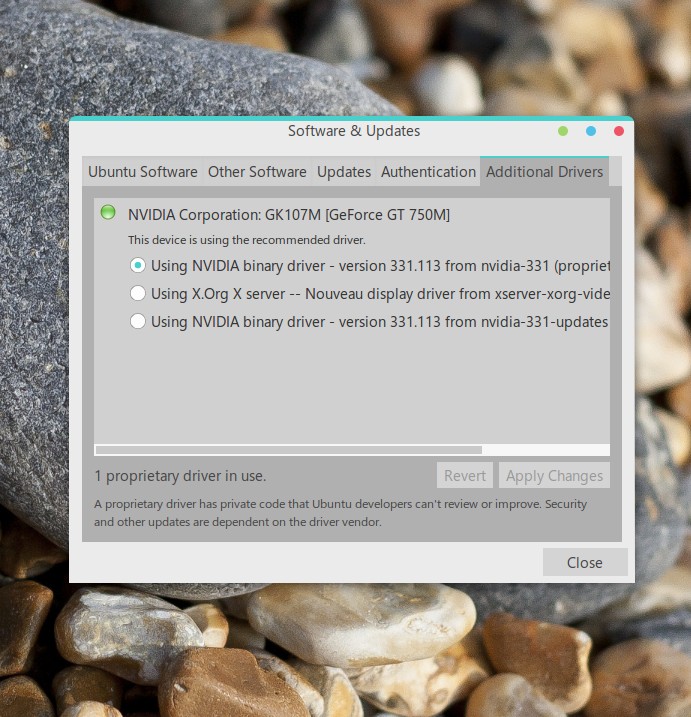

If you’re serious about gaming, there are only two viable options of getting a decent graphic card, Nvidia or AMD. Both has released proprietary binary package for their graphic chip, and if you’re using ubuntu, the easiest way to install them is through Ubuntu’s additional drivers app. Find and open the “Additional Driver” app from your dash menu, and let it sit for a while to probe your computer and lists any additional driver you can install to your system.

If it doesn’t see your graphic card, close the “Additional Drivers” window, and do:

sudo apt-get update

sudo apt-get upgrade

And try reopen “Additional Drivers” again. To install Nvidia proprietary driver, select “Nvidia binary driver” and press “Apply Changes”. For AMD, search for fglrx. If you’re prompted to restart your system, do so.

If you’re on a notebook, chances are, it’s equipped with hybrid graphic setup, where an intel or lower tier amd graphic chip is coupled with an Nvidia or higher tier AMD GPU. In Nvidia-speak, they call it Optimus. Native support for Nvidia Optimus arrived a bit late on linux, and the implementation is kind of awkward. Instead of detecting whether an app requires a beefy graphic resource and automatically activate the discrete GPU, linux users must manually switch between GPU, log out and log back into desktop. Bumblebee partially alleviate this problem by allowing users to choose which GPU an app is going to use. I’ve heard that support for AMD fglrx has recently been added to bumblebee, but I haven’t got the chance to test it yet.

On Ubuntu 14.04, the best way to do this is through an additional PPA. Please note that these steps also update your Nvidia binary driver to version 331:

first, remove existing installation of Nvidia binary driver

sudo apt-get purge nvidia*

if you have tried installing bumblebee, you should remove them too

sudo apt-get purge bumblebee*

update your system

sudo apt-get update
sudo apt-get dist-upgrade

add the x-swat repo

sudo apt-add-repository ppa:ubuntu-x-swat/x-updates

..update

sudo apt-get update

next, install the softwares:

sudo apt-get install linux-headers-generic
sudo apt-get install nvidia-331 nvidia-settings-331
sudo apt-get install bumblebee bumblebee-nvidia primus virtualgl mesa-utils

Then, edit the bumblebee config file:

sudo nano /etc/bumblebee/bumblebee.conf

Find these lines, and make some change:

Driver=

to

Driver=nvidia

Scroll down until you find [driver-nvidia], and make more changes:

[driver-nvidia]
# Module name to load, defaults to Driver if empty or unset
KernelDriver=nvidia-331
PMMethod=auto
# colon-separated path to the nvidia libraries
LibraryPath=/usr/lib/nvidia-331:/usr/lib32/nvidia-331
# comma-separated path of the directory containing nvidia_drv.so and the
# default Xorg modules path
XorgModulePath=/usr/lib/nvidia-331/xorg,/usr/lib/xorg/modules
XorgConfFile=/etc/bumblebee/xorg.conf.nvidia

Save, and then do

sudo apt-get install --reinstall bbswitch-dkms

Finally, restart bumblebee

/etc/init.d/bumblebeed restart

Bumblebee should be ready for you. For example, to use your discrete graphic card with steam, do:

optirun steam

If you’re using Gnome-Shell, the Bumblebee Indicator extension should come in handy. It will add a small bumblebee logo on your top right tray that lights up when your discrete  GPU is being used.

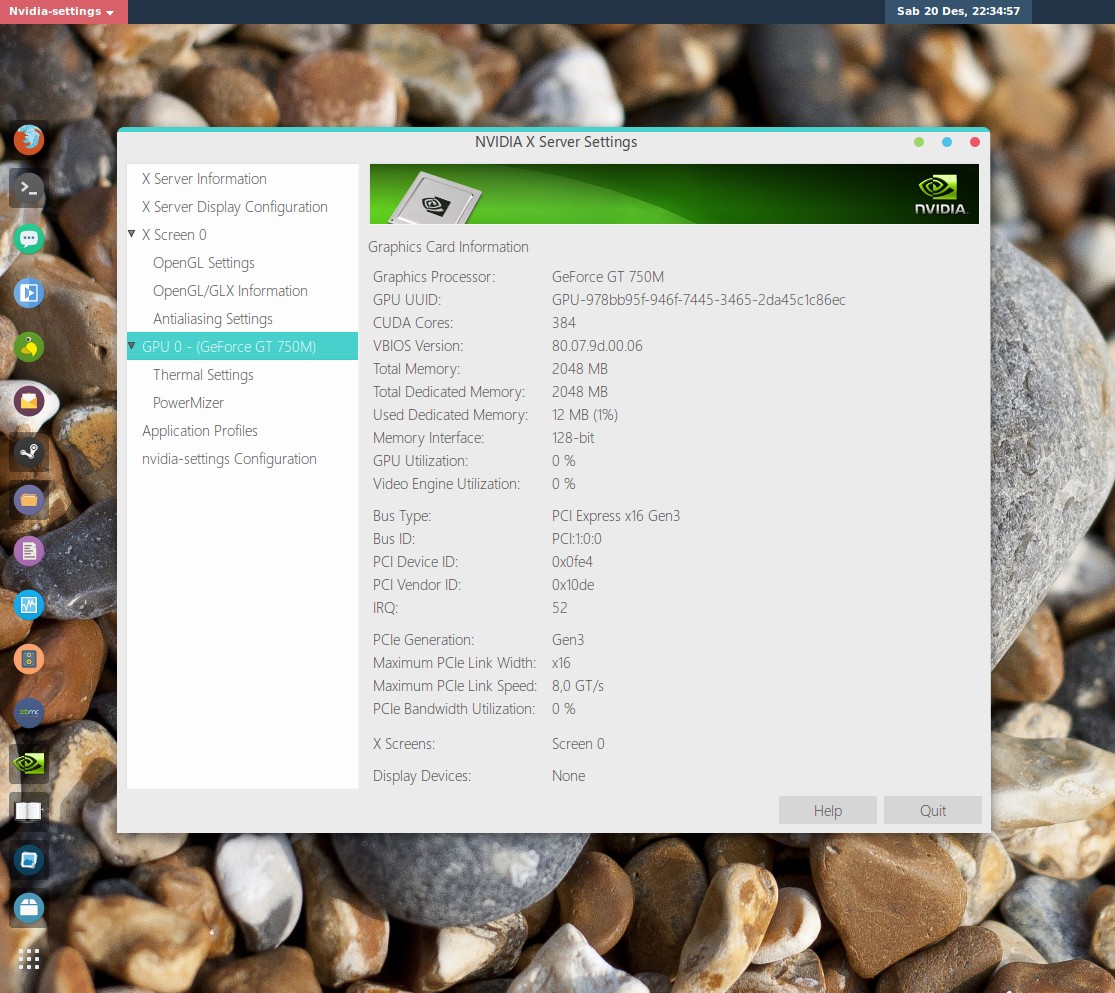

To access nvidia settings, do

optirun nvidia-settings -c :8

You can add this manually to your app menu, by installing alacarte.

2. Steam

Installing steam is a straight forward process. It’s available on Ubuntu repository, so you can do:

sudo apt-get install steam

To integrate bumblebee to Steam, right click on the game that you want to run with discrete GPU, and select “Properties”.

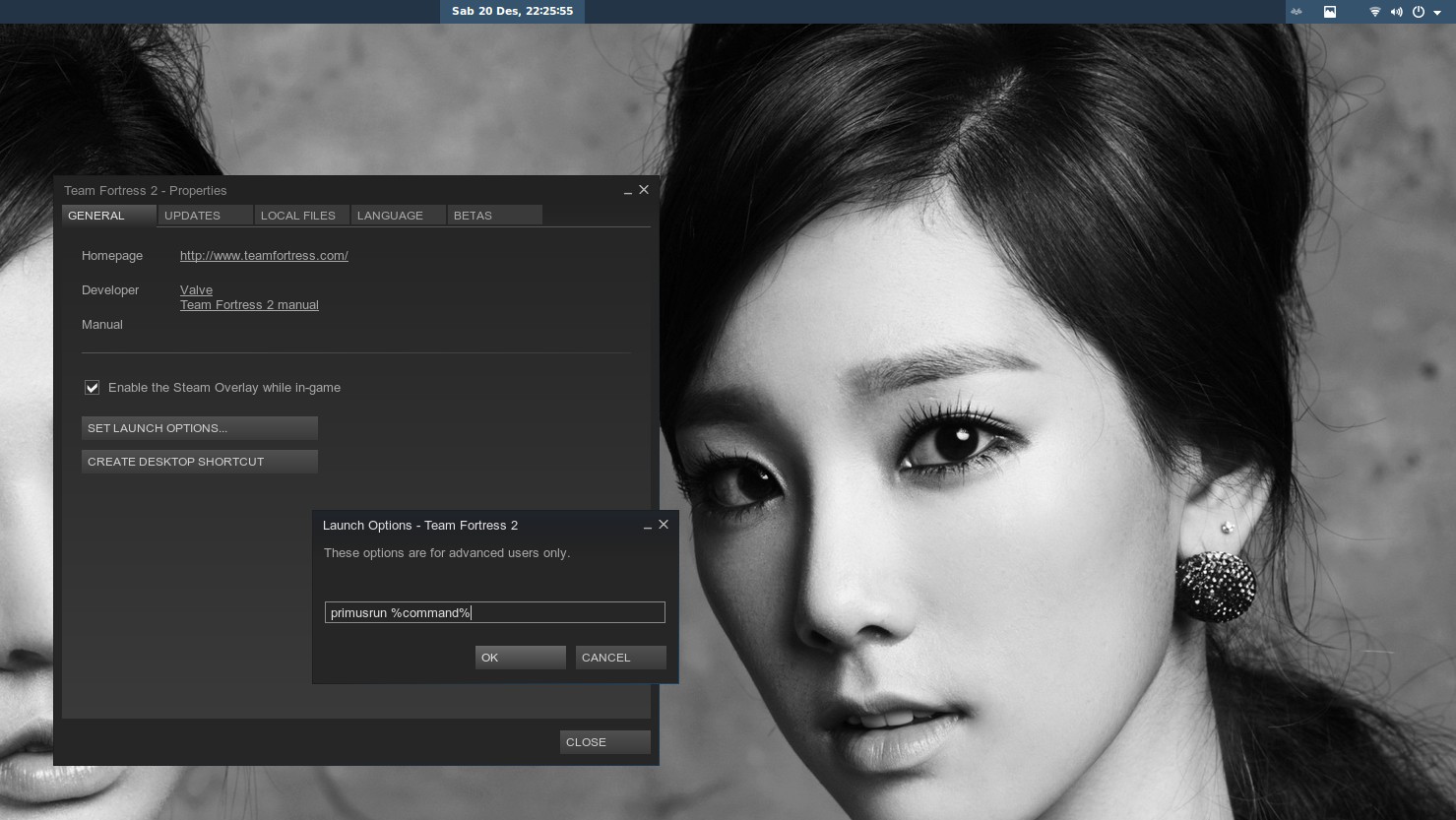

On “Properties” window, at the GENERAL tab, press the “SET LAUNCH OPIONS…” button, and put primusrun %command%. Press OK to save the change, and close the window.

3. Steam on Wine

To get games that’s only available on windows, you can install Windows version of steam via wine. There are a couple of ways to do that. If you already have wine installed, you can download and install it right away. Or, you can use PlayOnLinux. There are a couple of advantages of using PlayOnLinux. For exmaple, it creates a separate virtual folder and install its’ own version of wine(s), you can use more than one version of wine, depending on the requirements of your Windows app. So you can have 3 apps installed, each with its’ own virtual folder and a version of wine. This also means, mucking around with windows components on certain virtual folder only affect that specific app, and won’t other apps on your system.

PlayOnLinux is available on Ubuntu’s official repo, so you can install it right away by doing:

sudo apt-get install playonlinux

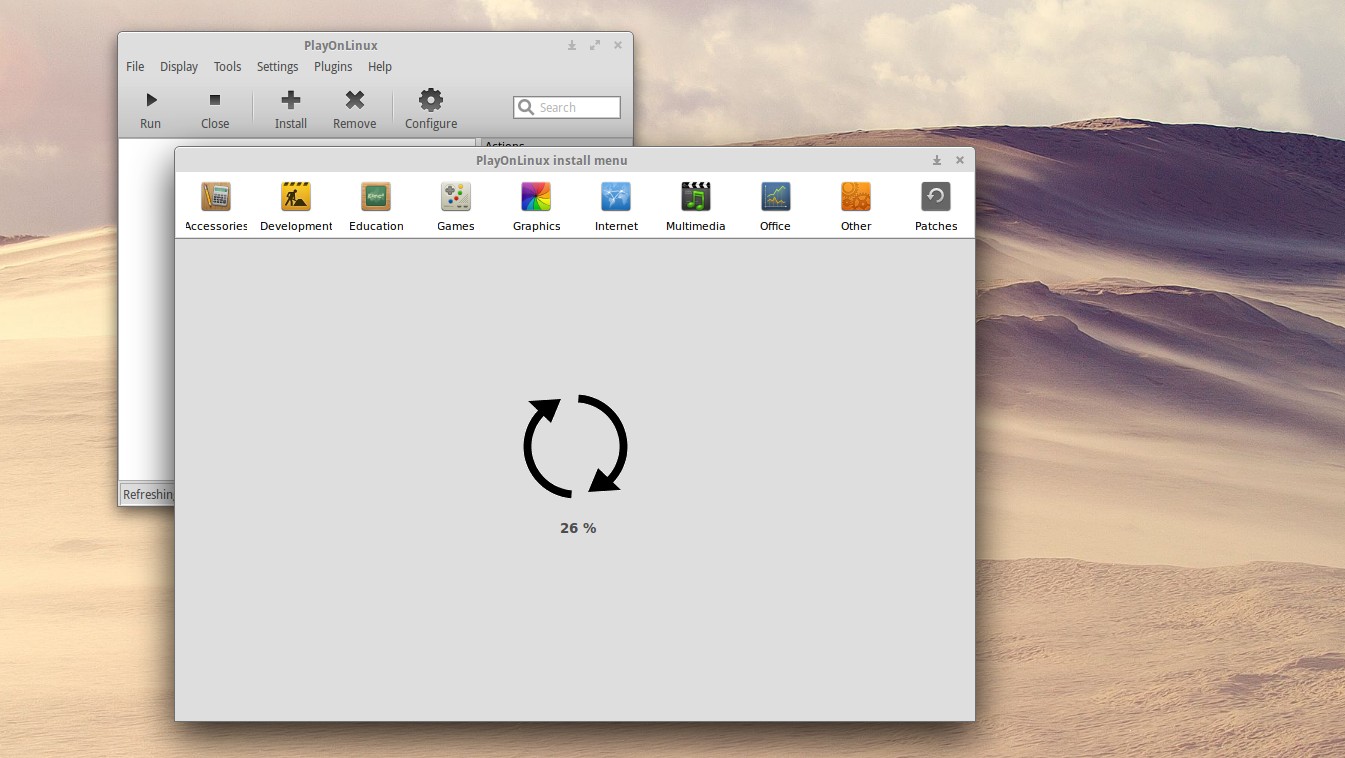

Once it finished installing, open PlayOnLinux from your app list, and wait until it’s ready

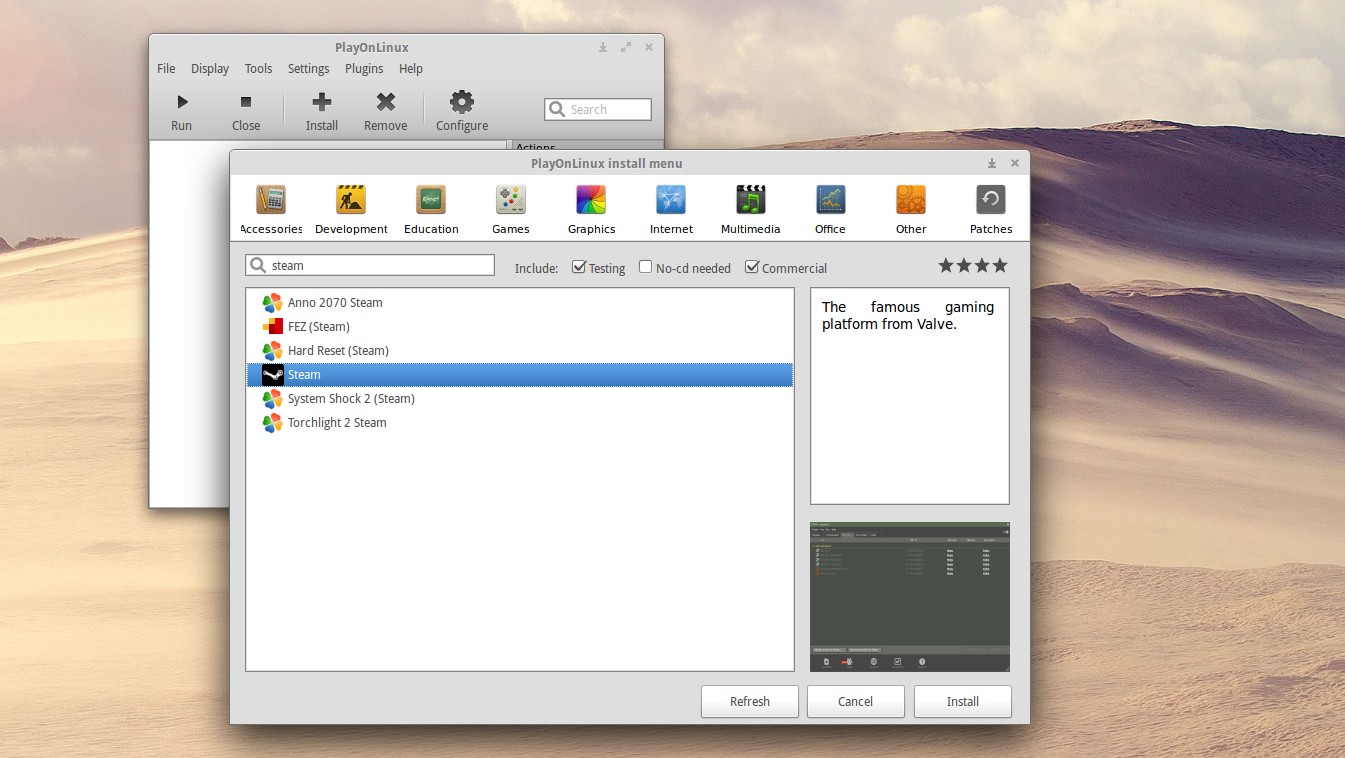

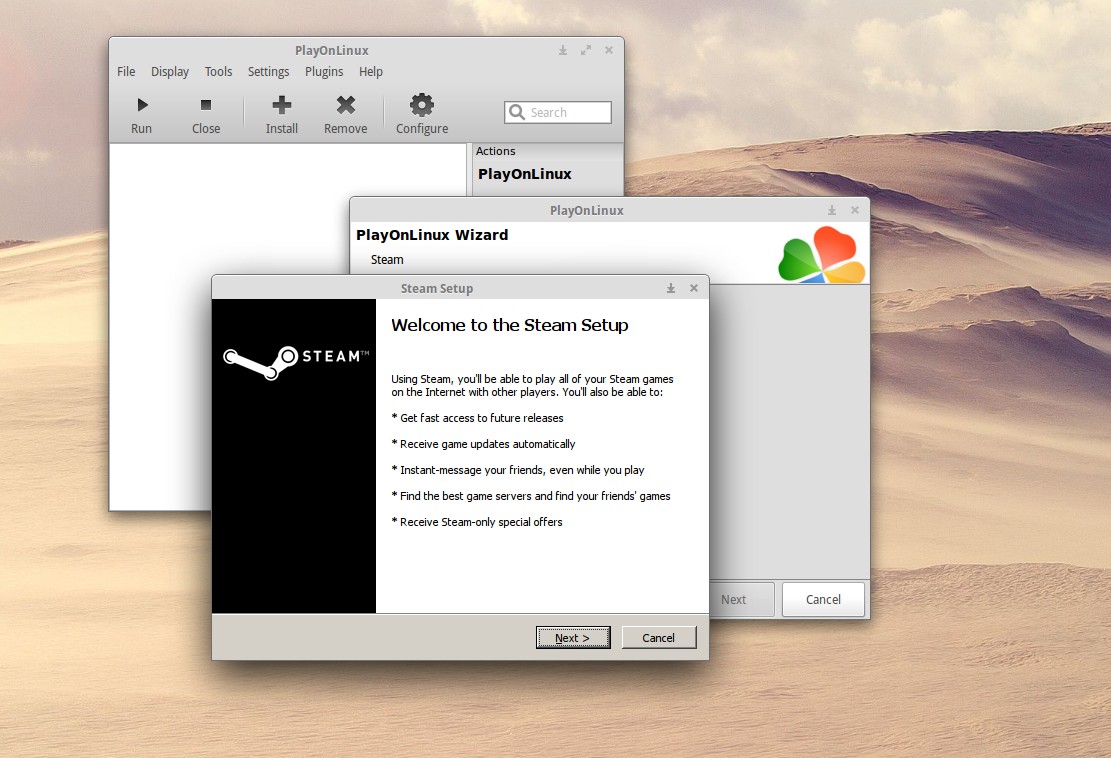

Search for steam, and press the install button

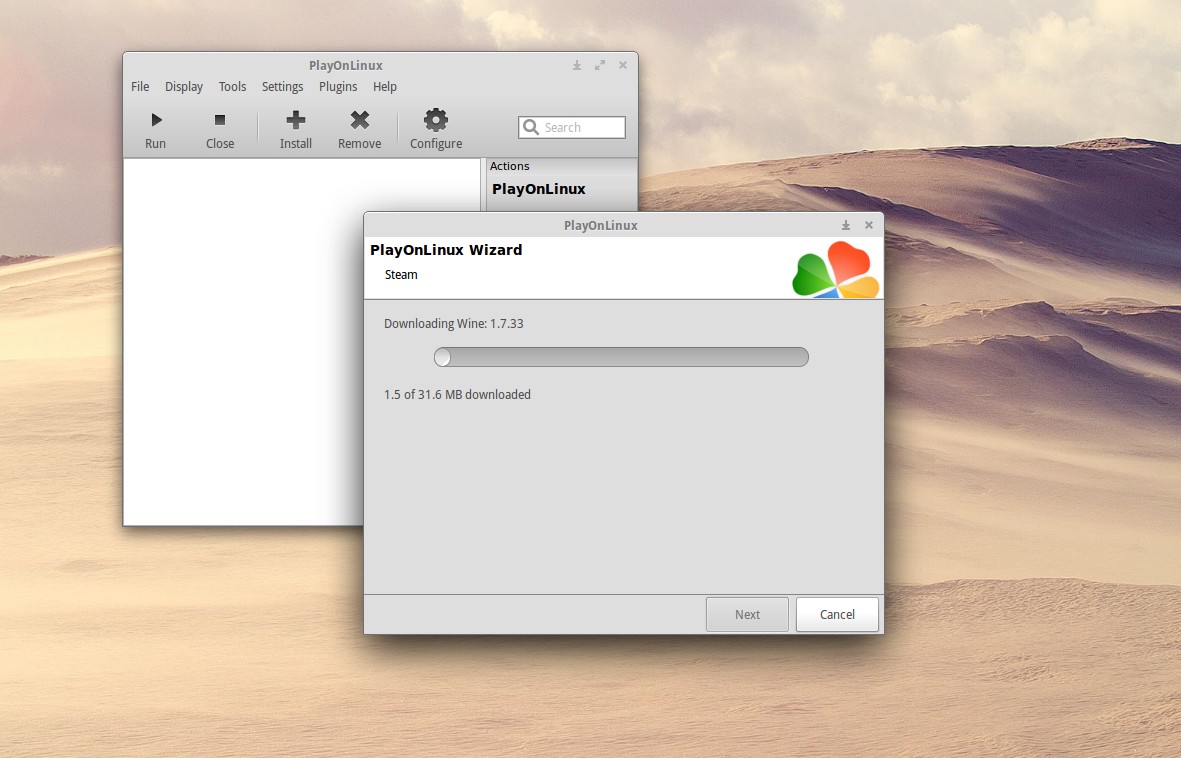

It will install steam, along with the newest steam-compatible version of wine

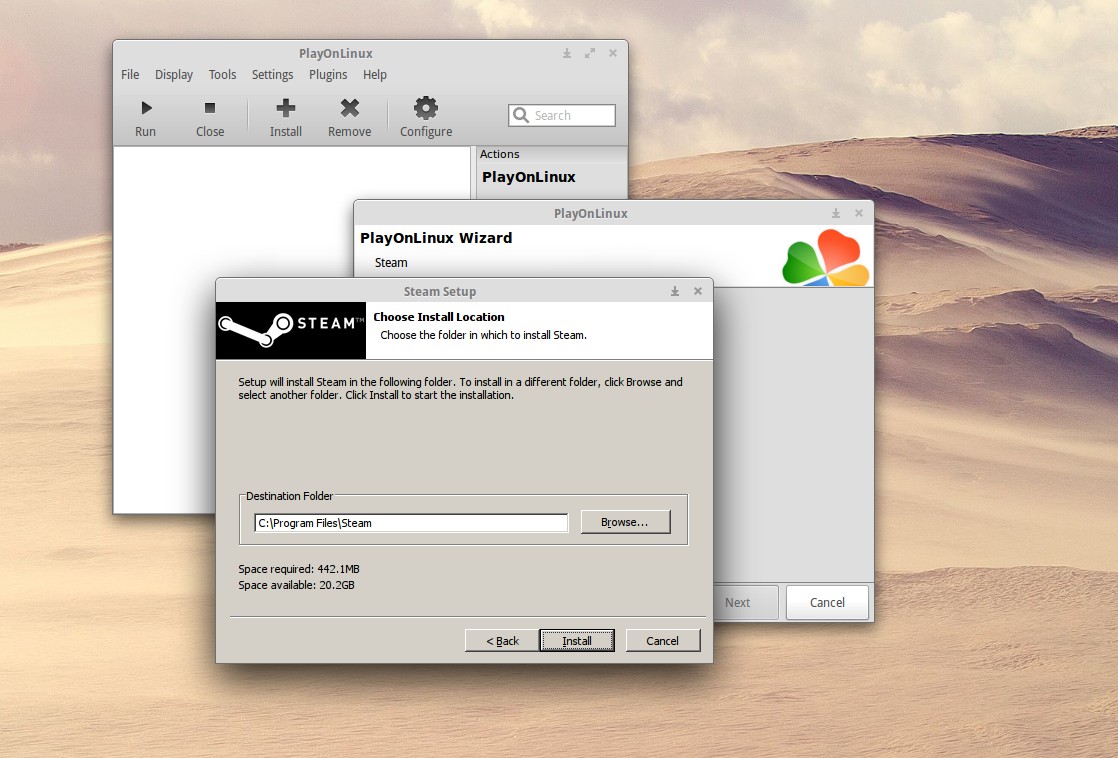

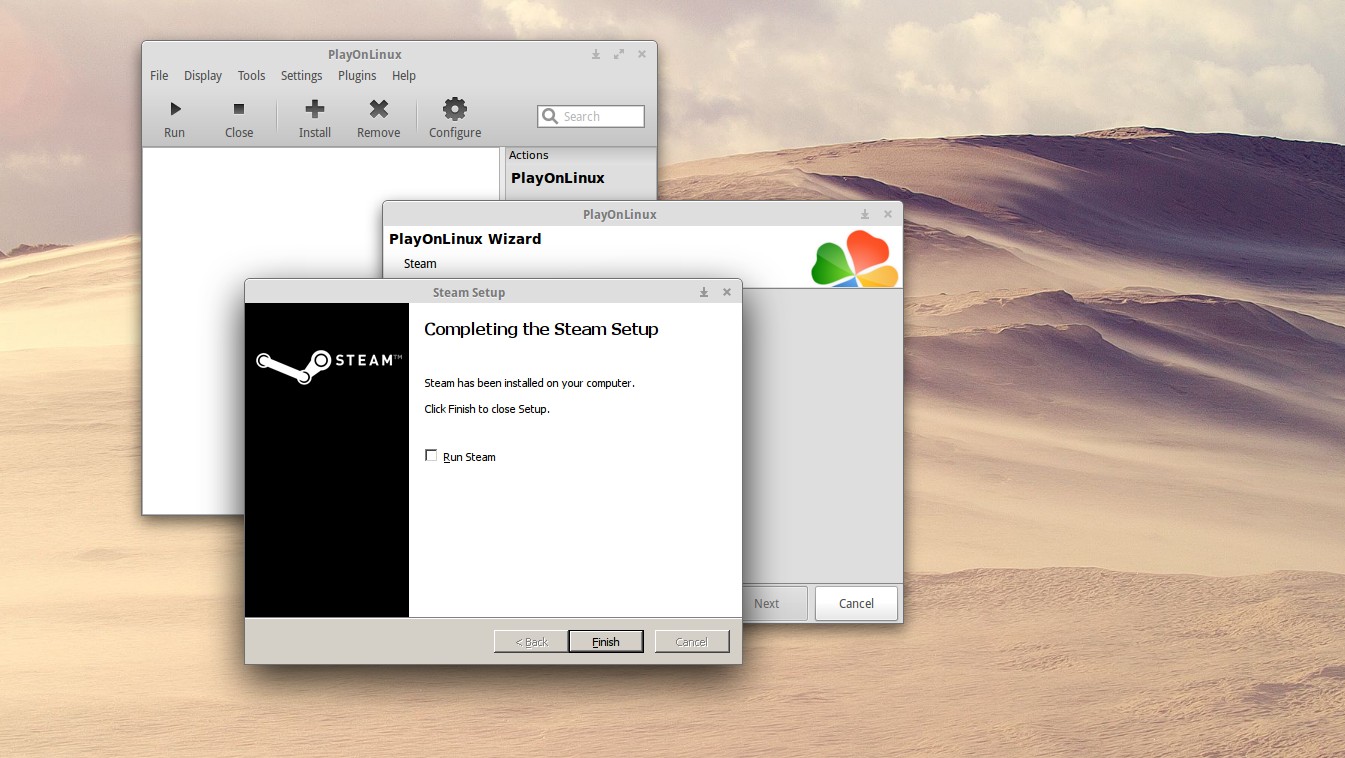

Make sure to use the default location for steam install, and opt-out when asked to run steam after installation is completed

To make sure that Steam on PlayOnLinux uses bumblebee, open it by doing:

optirun playonlinux

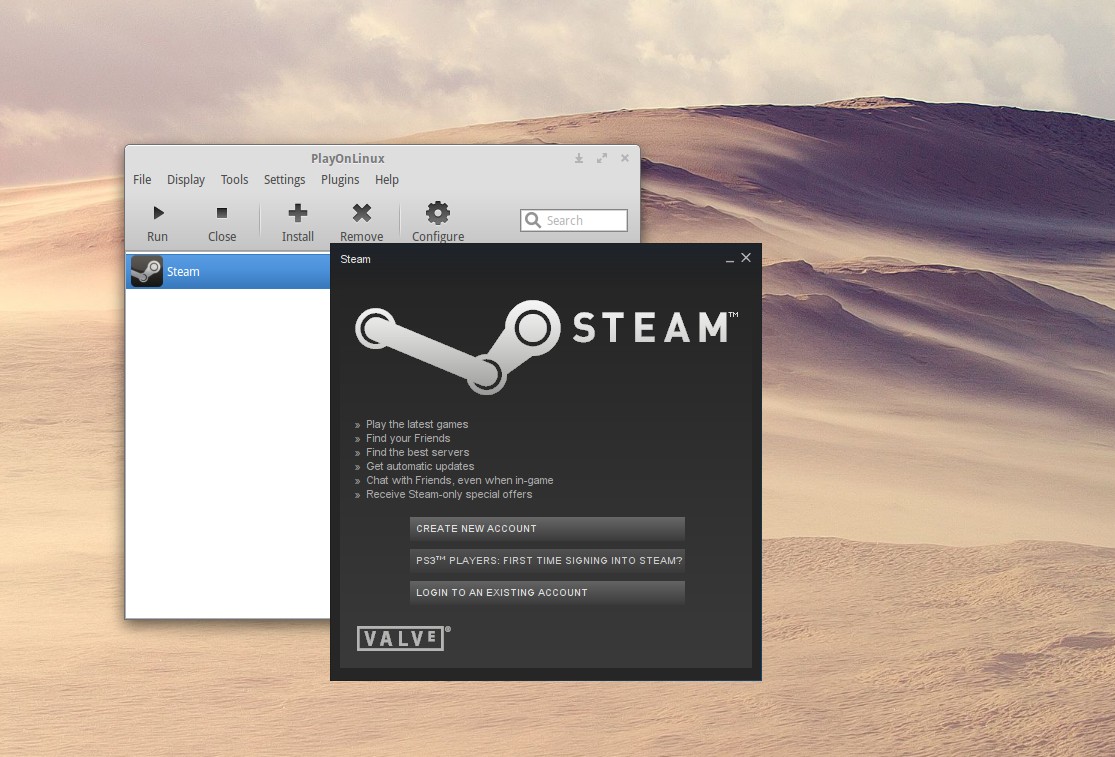

To start steam, select steam from the list, then press “Run”. PlayOnLinux might tell you that it has crashed, but just ignore the notification and press next to close the notification window.

You should now be able to login, download and install your game.

If you have any question, feel free to write it down on the comment section below 🙂
